STAAD.foundation Advanced 基礎設計軟體  試用版下載

(執行環境:適用於Windows2000/ME/XP/VISTA/7)



STAAD Foundation Advanced



簡述

STAAD.foundation 是一款經濟實惠的綜合基礎設計解決方案。它包括獨立基礎、聯合基礎、條形基礎、承台和板筏等基礎設計。所有模組均已集成,且共用相同的載荷資料。它既可以作為獨立產品使用,也可以與 STAAD.Pro 集成使用。

STAAD.foundation 可從 STAAD.Pro 模型中自動吸收幾何線形、載荷和結果,以便設計基礎。它甚至還可跟蹤 STAAD.Pro 模型中所作的更改,並可將反應輸出合併到現有基礎模型中。

STAAD.foundation 不僅可分析和設計各種基礎配置,還可製作優質生產報告以及基礎結構的詳細三維渲染圖。使用完整的 OpenGL 圖形,工程師可以清楚地查看側移形狀、應力分佈、鋼筋佈局及其支撐結構的壓力圖。

所有模組均使用物理物件,包括無需嚙合的物理梁和板層。佈局工程圖是一款極為有用的工具,它可以顯示實際基礎的位置和大小,甚至還可檢查重疊元件。計算表是另一款備受歡迎的工具,它使用相關代碼子句和公式顯示具有詳細講解步驟的計算。

對於板筏設計,STAAD.foundation 通過使用單個元應力、而不是柱帶來應用真實的有限元設計。它可自動檢測不接觸土壤的板筏區域,並將壓力重新分配到該板筏的其他部分。您可以對板筏進行直線設計,並檢查所有柱位置的沖孔剪力。

目前,STAAD.foundation 支持三種國際設計代碼:

·         ACI-2005

·         BS 8110

·         IS-456 2000

為了滿足工廠設計行業的特定需求,許多模組,例如:垂直管道基礎(八角形)和熱交換器基礎。使用自動生成風力載荷和基於郵遞區號的抗震載荷計算,土壤或橋墩均可支援上述兩種基礎。



功能

1.    工廠設計基礎

·         專為工廠設計行業推出特定範本(例如,垂直管道基礎和熱交換器基礎)

·         內置載荷類型(例如:運營測試捆綁拉力

·         基於 API 650ACI 318PIP 指南、ASCE 7IS 456 IS 875 III 適用印度規範)的環形蓄水池基礎

·         鑽孔墩/打入樁橫向分析。雙重非線性分析,非線性土壤回應和樁段。14 種預定義的土壤類型,四個預定義的剖面圖。簡化結構工程師的輸入過程

·         根據 ASCE 7 PIP STC 01015 自動生成載荷組合

·         根據 ASCE 7 自動生成風力載荷和基於郵遞區號的抗震載荷

·         現在支援印度規範,可按照 IS 456 進行具體設計,按照 IS 875 III 生成風力載荷,按照 IS 1893 I 生成抗震載荷

·         計算時間段

·         土壤、八角承台或方形承台基礎設計工具包中提供垂直管道基礎

·         省時的嚮導式輸入,用於進行獨立基礎、聯合基礎、承台佈置和設計

·         輸入參數已經過分類,並按設計程式排序

·         可編輯的幾何視圖,可對圖形基礎進行尺寸標注

·         鑽孔墩軸向分析模組,支援 API FHWA 1999 以及備選 vesic 方法

·         基於 ACI 318 的拉線塔基礎模組

2.    通用基礎

·         直觀友好的圖形化使用者介面;工作流已經過分類,並按從上至下的方式分佈

·         完整的基礎專案環境(包括獨立基礎、聯合基礎、條形基礎、承台、八角基礎和板筏基礎);它通過一個全域層連接所有模組

·         選項卡視圖、樹狀導航和浮動工具列

·         適用於板筏基礎的建模嚮導

·         板筏基礎模型建模環境可節省時間並減少錯誤

·         模型載荷(例如:空間上的點載荷、四邊形載荷、圓形載荷或線載荷)支援用戶模擬蓄水池載荷和牆載荷

·         可與 STAAD.Pro V8i 無縫集成,以導入載荷、反作用力、柱位置;用戶可以導入任何一套經過分析的板筏進行設計;跟蹤 STAAD.Pro V8i 模型中所做的更改,還可將這些更改與 STAAD. foundation V8i 檔合併在一起

·         功能強大、基於 OpenGL 的圖形有助於實現輸出(例如,位移、側移形狀中的應力、聯合梁應力)和實體(例如,三維視圖中的板筏和梁)的視覺化,提供真實的渲染視圖

·         自動載荷轉換 (從基座頂部到基礎根部)

·         自動排樁

·         梁模型

·         自動生成網狀模型,同時考慮孔、控制區域和圓柱線等因素;提供三角形板筏和四邊形板筏輸出選項

·         支援匯出 DXF 格式的詳細工程圖和總體佈置圖,以生成場地工程圖

·         每個基礎都對應一份詳細的結構工程圖,並帶有可定制的繪圖選項和標籤

·         底部壓力和板筏應力彩色等高線

·         使用代碼子句和公式為詳細計算表提供詳細講解步驟,以驗證設計輸出

·         總體佈置圖具備可以優化的網格標記和按比例繪圖功能,可檢測重疊元件,從而説明使用者選擇適當的基礎設計類型

·         對基礎進行分組,用於製作工程圖和示例計算

Comprehensive Foundation Design

Are you tired of designing one footing at a time? STAAD Foundation Advanced presents a total foundation project design environment.




The program integrates all common footing designs by having two layers of data: local and global. Local data is used by an individual footing type, while global data—like column positions, support reactions, Bearing Capacity, Load Factors, and Self Weight Inclusion— are shared among all footings.

The program includes a myriad of foundation configurations such as spread (isolated) footings, strip (combined) footings, pile caps (including 3 pile arrangement and multilayered circular arrangement), octagonal footings, strap footings (used for equipment foundation) and mat foundations. In addition, the program includes vertical vessel, heat exchanger, and ground water tank foundation (with ring beam) and specialized footing types such as drilled pier and dead man anchor guy foundations. Beam footing is available for Indian users.

The program supports multiple design codes: ACI-2005, ASCE705, PIP 650,NBCC05 (Canadian), BS 8110 (British), IS-456-2000 (Indian), AS 3600 (Australian), CSA A23-3.04 (Canadian), EN 1992-1-1-2004 (Eurocode 2), and GB 50007 (Chinese).

Mat foundation design includes both slab-on-grade and slab-on-piles. Even a beam-stiffened mat can be designed. Holes can be placed and analyzed accordingly. It helps you visualize and optimize footing design with different integrated footing design modules.

The program automatically detects slab areas out of contact with the soil and redistributes forces to other parts of the slab. The entities and the graphical representation of the mat foundation output—such as displacements, forces, and stresses—are shown using OpenGL for a realistic rendered view.



Advanced Mode for Plant Users

The plant mode can design different types of equipment foundations. Vertical vessels can be supported by square footing, octagonal footing, or either square or circular pilecap. Horizontal vessels—single or multiple—can be supported by two isolated footings, a combined footing, or isolated footings connected by a strap footing. The plant mode supports U.S. and IS code, as well as the PIP guidelines. The program can automatically generate seismic and wind loads (based on IS or U.S. codes). The design of octagonal and square pedestals is also possible. To help plant users, the general mode includes octagonal and strap modules so that multiple footings can be designed in a single environment. This allows the general mode to be used to manage equipment and structural foundations in a single project.










A new module for tank foundations is included in the plant mode. It is extremely helpful for designing ground water tank foundations supported by annular ring beams. This module can generate wind and seismic loads (even considering sloshing effect).










Completely Integrated Design with STAAD.Pro

STAAD Foundation Advanced is tightly integrated with STAAD.Pro—a leading product in structural analysis and design—with bidirectional data transfer.

You can open any STAAD.Pro file and import all column positions, support reactions, and so on. It even keeps track of changes in the STAAD.Pro model. If the superstructure gets updated, you can easily merge new output results within your STAAD Foundation Advanced file.

STAAD Foundation Advanced is a must have for any STAAD.Pro user. It saves a tremendous amount of time and reduces errors.

The program gives existing STAAD users option to exclude or include any loading or support/change load type and so on directly when any file is being exported to STAAD Foundation.



Detailed Output Option

STAAD Foundation can automatically generate design reports (referred to as calculation sheet) that are very comprehensive and descriptive and are based on critical loadcases. But for foundation projects where a large number of loads are being considered (as is common for plant users), often it becomes necessary for the designer to see the design summary for all loadcases. Therefore a new option called “Detailed Output” is included that can generate a summary report for all loadcases and can help you to optimize the design or track the reason of failure.

Integration with Microsoft Office Excel Spreadsheet Software

STAAD.Pro users who like to use the STAAD Editor will find this feature useful, but it is intuitive enough for any user to find helpful. STAAD Foundation uses an XML format that can be opened using Microsoft Office Excel spreadsheet software. STAAD Foundation project files can also be exported to spreadsheet files and vice versa (through the use a specially formatted spreadsheet proved with the program). So a designer can link their own spreadsheet with STAAD Foundation very easily with the help of this feature.



Incorporates Rigid and Flexible Methods of Design

STAAD Foundation Advanced includes both rigid and flexible methods of foundation design.

Spread footings, combined, strip, and single column pile caps are designed using rigid methods to match the steps of a design engineer. It also has fully capable FEM analysis where you can model a simple footing or large mat. It provides a sophisticated and accurate tool to analyze and design mat foundations for multiple regions with different soil properties, thickness, holes, and beams.

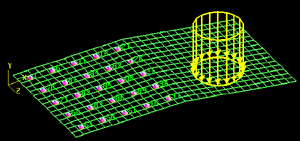

Provides Auto-Meshing and Physical Loading for Mat Foundations

We understand the frustration and time you might face in converting a physical mat into thousands of analytical components in order to do a sophisticated FEM analysis. STAAD Foundation Advanced eliminates this step by creating analytical components with auto-meshing.

However, the output and design results are based on physical entities like slabs and beams. You can automatically convert local axis analysis results to a global (or user-defined) axis system. This not only saves time, it reduces errors significantly.



FEM Analysis for Accurate and Economical Designs

STAAD Foundation Advanced has a very unique and innovative technique for mat design that takes full advantage of FEM analysis, which can provide for an accurate and economical design. It designs the slab at thousands of discrete points taking into considerations unlimited number of load cases. This unique approach to creating user-defined reinforcing zones helps you to visualize and optimize the reinforcement requirement. You can even select a section on any part of the mat and design reinforcement along that cut line. Punching shear checks are also included at column location.

This version offers an additional tool to check slab moment capacity for a given reinforcement layout.

For users who prefer to follow conventional strip method, STAAD Foundation provides a unique option called “Cut slab by a line” where you can track shear force and bending moment diagrams at that strip and design accordingly.



Easily Handles Complex Foundations

No matter how complex your foundation is, STAAD Foundation Advanced can handle it. Whether it is rectangular, complex polygonal, circular, or elliptical, STAAD Foundation Advanced has the tools to model any shape.

In addition, you can model both regular and irregular column lines. The sophisticated mesh generation algorithm allows you to create holes (cut-outs) and inner regions with different thicknesses to simulate pedestals. Loads automatically transfer from the top of the pedestal to the base of the foundation. You can specify an unlimited number of load cases for analysis and design.

The Foundation Toolkit mode is provided to address the needs of special footing types like drilled pier and dead man anchor guy foundation. Both modules can take multiple layers of both cohesive and cohesionless (or mixed type) soil.

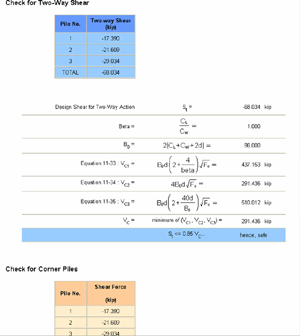

Thorough Output Including Calculations

Since STAAD Foundation Advanced is developed by engineers, it understands an engineer’s need to review results by presenting a detailed calculation sheet.

STAAD Foundation Advanced lists all relevant code clauses with equations and calculated values. You can follow the method used in the program and feel confident with the results. Our calculation sheet is based on XML format so your clients can view the calculation with any Web browser even if they don’t have the software.



Detailed Drawings Directly from the Program

The program produces detailed drawings, general arrangement (GA) drawings, and footing schedule drawings. The detailed drawings include both plan and section drawings with rebar marks in both longitudinal and transverse directions. GA drawings are also provided and include all the footings designed in the project to scale with grid lines and grid marks. With the help of this drawing, you can check for mistakes—and the program actually marks all overlapped regions. For example, two isolated footings may overlap; and by utilizing the layout drawing, you can decide to design these as a combined footing. The footing schedule drawing produces a plan drawing along with a table with footing marks, dimension, and reinforcement.

All the drawings can be exported to either DWG or DGN formats for final production drawings.



Automatic Pile Arrangement

Pile arrangement can be a tedious task. However, STAAD Foundation Advanced includes a wide range of predefined pile arrangements to save you time. In addition, the program can automatically select the best possible pile arrangement for a given pile capacity. The BOCA standard is followed for predefined pile arrangements.



Unparalleled Service and Online Help

Our support staff is comprised of engineers with in-depth knowledge of the program. With over 14 full-time support personnel, Bentley can provide 24/7 support to anyone, anywhere in the world.

In addition, we have movie tutorials that explain all possible steps needed to use STAAD Foundation Advanced, and we have a growing FAQ section posted on our Web site.
